BL11U

Home BeamlinesSSRFBeamline MapsBL11UBeamline introduction
Scientific Scope
More
The BL11U high-pressure diffraction beamline is a dedicated experimental platform designed for studying material structures under extreme high-pressure conditions. Utilizing the high brightness and penetration power of synchrotron radiation X-rays, combined with high-pressure devices such as diamond anvil cells (DAC) and large-volume presses, it can generate static high-pressure environments ranging from tens to millions of atmospheres. Equipped with micro-focused beams (micron to sub-micron scale), high-precision sample stages, and rapid two-dimensional detectors, it supports multiple modes including powder diffraction, single-crystal diffraction, and radial diffraction. This enables real-time measurements of lattice changes, phase transition pathways, equations of state, and electronic structure evolution in materials under high pressure. The beamline is widely applied in cutting-edge research areas such as mineral physics of Earth's deep interior, planetary science, superhard material synthesis, high-pressure superconducting mechanisms, and energetic material properties. Additionally, it provides coupled extreme conditions including cryogenic, high-temperature, and laser-heating environments, facilitating material science exploration under multi-field extreme conditions.

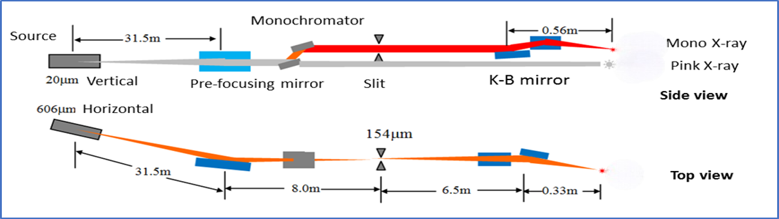

Beamline Layout
More

Specifications
More

Energy

9.6-33.1 keV

Energy resolution（∆E/E）

1.9×10-4

Minimum beam size at Sample（FWHM）

2.0 mm(H)×2.0 mm(V)（FWHM）

Photon flux（@300 mA）

1.8×1010 phs/s@30 keV

Beam divergence at sample

1.0 mrad(H)×0.5 mrad(V）

Endstations
More

This beamline comprises three experimental stations arranged sequentially from upstream to downstream along its path: the High-Temperature Station, the Low-Temperature Station, and the Submicron Station. The High-Temperature and Low-Temperature Stations are located in the first experimental building, while the Submicron Station is situated in the second building. The BL11U beamline enables a variety of experiments including powder diffraction, single-crystal diffraction, grazing incidence diffraction, and in-situ dynamic diffraction. It is equipped with a high-precision sample stage, two-dimensional detectors, temperature and pressure-controlled sample environments, and a rapid time-resolved system, allowing real-time characterization of material microstructure evolution under external conditions such as temperature and pressure. The facility supports one-dimensional and two-dimensional absorption/diffraction measurements as well as energy-dispersive spectroscopy analysis, facilitating studies of material static structures and dynamic evolution across multiple scales and conditions.

Data Acquisition and Analysis
More

The BL11U beamline acquisition system with comprehensive automation capabilities, supporting DAC gas-membrane controlled loading and resistive/laser heating functions. Based on user requirements, it can be configured to support fully automated sample collection operations, significantly enhancing user experience.
